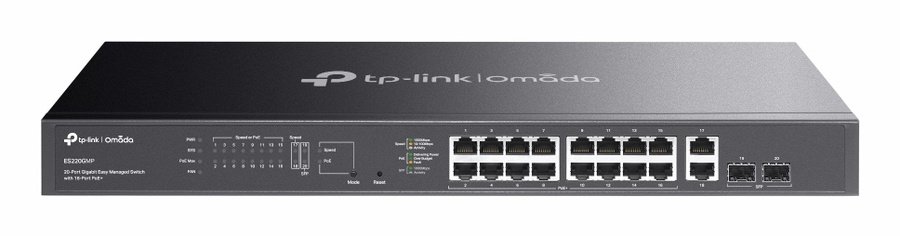

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
$299.99
In stock
In stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Unified static configuration | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 32 |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 40 Gbit/s |
| Jumbo frames | 15000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Forwarding rate | 29.76 Mpps |
| Number of VLANs | 32 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Noise level | 41.5 dB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 310550.7 h |
| Stackable | No |
| Packet buffer memory | 4 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 289.7 W |
| Surge protection | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Operating temperature (T-T) | -5 – 50 ?C |
| Storage temperature (T-T) | -40 – 70 ?C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Heat dissipation | 984.88 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 32 |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3″ (440 mm) |
| Depth | 7.09″ (180 mm) |
| Height | 1.73″ (44 mm) |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
