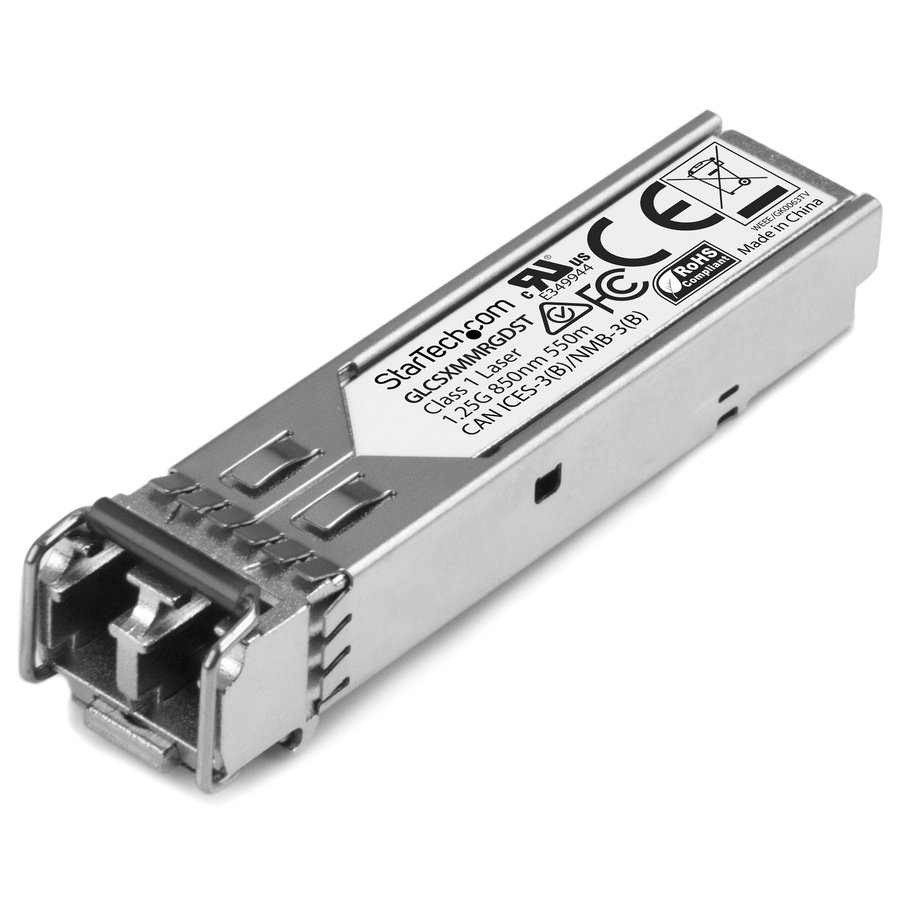

StarTech.com GLCSXMMRGDST network transceiver module Fiber optic 1250 Mbit/s SFP 850 nm
Out of stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminum |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 21653.5″ (550 m) |
| Wavelength | 850 nm |
| Duplex system | Full |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminum |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 70 ?C |
| Storage temperature (T-T) | -40 – 85 ?C |
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
| Width | 0.539″ (13.7 mm) |
| Depth | 2.23″ (56.6 mm) |
| Height | 0.492″ (12.5 mm) |
| Weight | 0.529 oz (15 g) |
| Package width | 4.65″ (118 mm) |
| Package depth | 3.66″ (93 mm) |
| Package height | 1.3″ (33 mm) |
| Package weight | 1.52 oz (43 g) |
| Packaging data | |
| Package width | 4.65″ (118 mm) |
| Package depth | 3.66″ (93 mm) |
| Package height | 1.3″ (33 mm) |
| Package weight | 1.52 oz (43 g) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 7.87″ (200 mm) |
| Master (outer) case length | 11.8″ (300 mm) |
| Master (outer) case height | 10″ (255 mm) |
| Products per master (outer) case | 36 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
