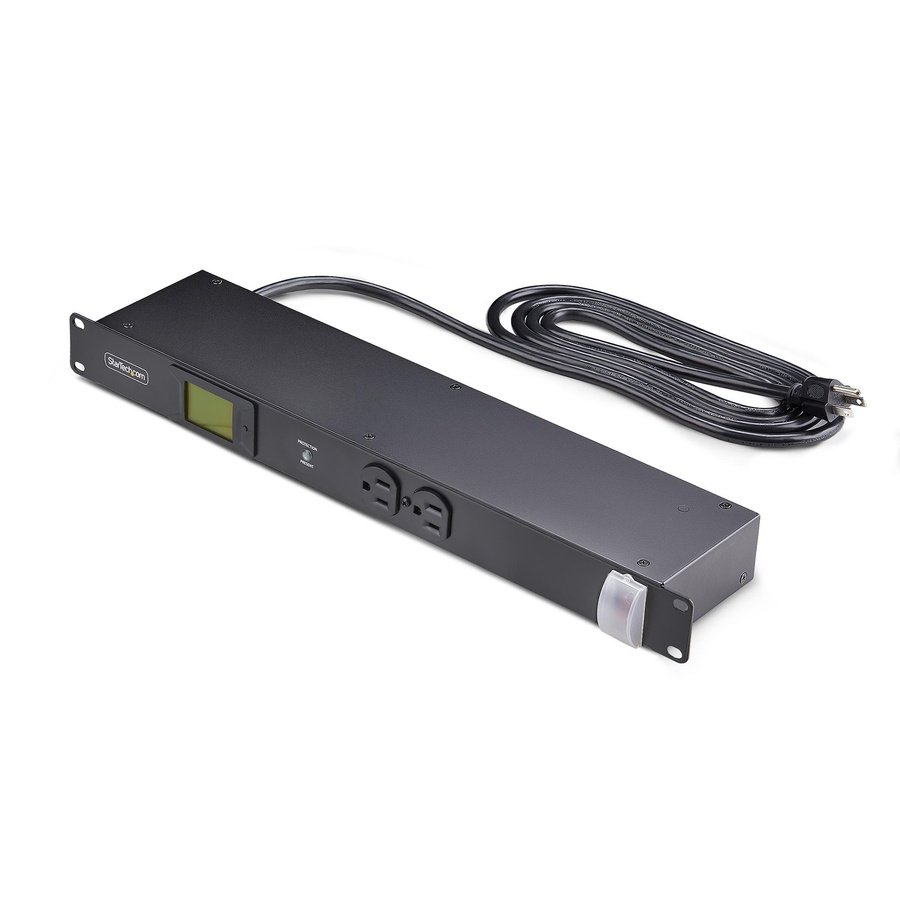

StarTech.com 12NM8-RACK-MOUNT-PDU power distribution unit (PDU) 12 AC outlet(s) 1U Black
$207.04
In stock
In stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal |
| On/off switch | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Features | |
| LED indicators | Yes |
| Cable length | 94.5″ (2.4 m) |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 94.5″ (2.4 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 15 A |
| Surge energy rating | 1080 J |
| Nominal output voltage | 120 V |
| Output voltage | 125 V |
| Maximum total current draw per phase | 15 A |
| Power protection features | Surge protection |
| Circuit breaker | Yes |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA), cULus |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 ?C |
| Storage temperature (T-T) | -10 – 50 ?C |
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
| Weight | 4.41 lbs (2 kg) |
| Width | 19″ (483 mm) |
| Depth | 3.78″ (96 mm) |
| Height | 1.69″ (43 mm) |
| Package width | 21.7″ (552 mm) |
| Package depth | 7.28″ (185 mm) |
| Package height | 3.15″ (80 mm) |
| Package weight | 5.51 lbs (2.5 kg) |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 21.7″ (552 mm) |
| Package depth | 7.28″ (185 mm) |
| Package height | 3.15″ (80 mm) |
| Package weight | 5.51 lbs (2.5 kg) |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA), cULus |
| Logistics data | |
| Master (outer) case width | 22.4″ (570 mm) |
| Master (outer) case length | 8.11″ (206 mm) |
| Master (outer) case height | 13.9″ (352 mm) |
| Products per master (outer) case | 4 pc(s) |
