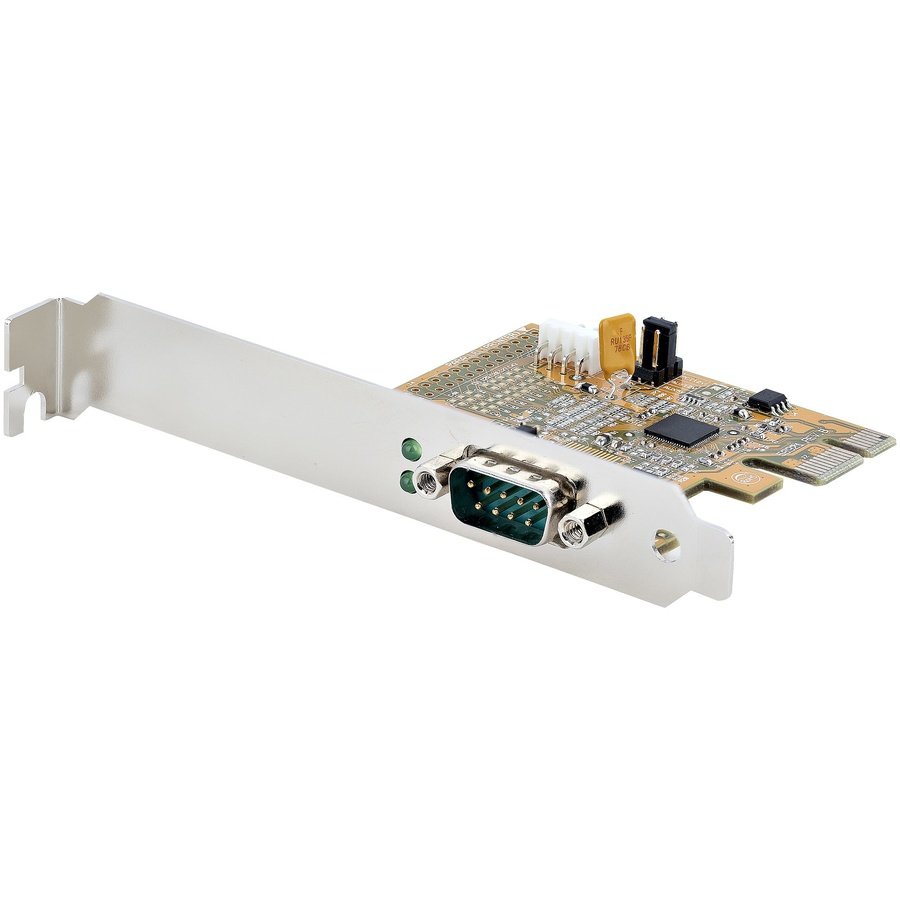

StarTech.com 11050-PC-SERIAL-CARD interface cards/adapter Internal
$76.86
In stock
In stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Performance | |
| Chipset | ASIX – AX99100, ASIX – ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Data bits | 5, 6, 7, 8, 9 |
| Product colour | Yellow |
| Baud rate | 921.6 Kbit/s |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Internal | Yes |
| Product colour | Yellow |
| LED indicators | Activity |
| Features | |
| Chipset | ASIX – AX99100, ASIX – ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 55 ?C |
| Storage temperature (T-T) | -40 – 75 ?C |
| Operating relative humidity (H-H) | 5 – 95% |
| Technical details | |
| Material | Steel |
| Compliance certificates | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
| Width | 2.56″ (65 mm) |
| Depth | 2.64″ (67 mm) |
| Height | 0.709″ (18 mm) |
| Weight | 1.48 oz (42 g) |
| Package width | 8.15″ (207 mm) |
| Package depth | 5.67″ (144 mm) |
| Package height | 1.5″ (38 mm) |
| Package weight | 7.05 oz (200 g) |
| Packaging data | |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Package width | 8.15″ (207 mm) |
| Package depth | 5.67″ (144 mm) |
| Package height | 1.5″ (38 mm) |
| Package weight | 7.05 oz (200 g) |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 20.9″ (530 mm) |
| Master (outer) case length | 17.3″ (440 mm) |
| Master (outer) case height | 13.4″ (340 mm) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Material | Steel |
| Chipset | ASIX – AX99100, ASIX – ZT3243LFEY |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
