Ports & interfaces
Cable length	47.6″ (1.21 m)
Number of computers controlled	2
Keyboard port type	USB
Number of microphone inputs	2
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
DisplayPort version	1.1
Headphone outputs	2
HDMI ports quantity	2
HDCP	Yes
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB 2.0 Type-B ports quantity	2
Performance
HDCP	Yes
HD type	4K DCI
Video bandwidth	60 Hz
Hot-Plug support	Yes
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Audio channels	2.1
Video
HD type	4K DCI
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Design
Product colour	Black
Cable length	47.6″ (1.21 m)
Housing material	Plastic
Display
Built-in display	No
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 – 50 ?C
Storage temperature (T-T)	-20 – 60 ?C
Operating relative humidity (H-H)	0 – 80%
Weight & dimensions
Depth	3.23″ (82 mm)
Height	1.02″ (26 mm)
Weight	12.7 oz (360 g)
Package depth	2.17″ (55 mm)
Package height	8.86″ (225 mm)
Package weight	16.9 oz (480 g)
Packaging data
Package depth	2.17″ (55 mm)
Package height	8.86″ (225 mm)
Package weight	16.9 oz (480 g)
Packaging content
Cables included	KVM
Logistics data
Master (outer) case length	15.2″ (387 mm)
Master (outer) case height	6.73″ (171 mm)
Master (outer) case gross weight	7.01 lbs (3.18 kg)
Products per master (outer) case	6 pc(s)

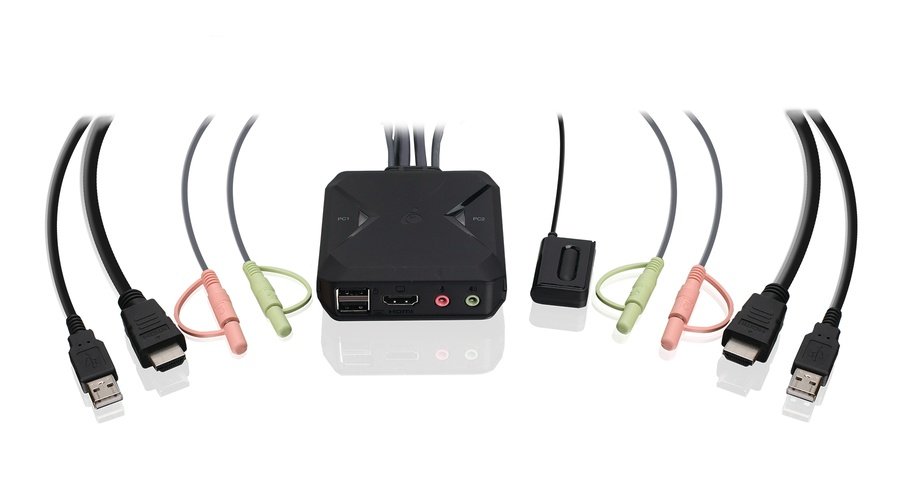

iogear GCS92HU KVM switch Black

Specifications
