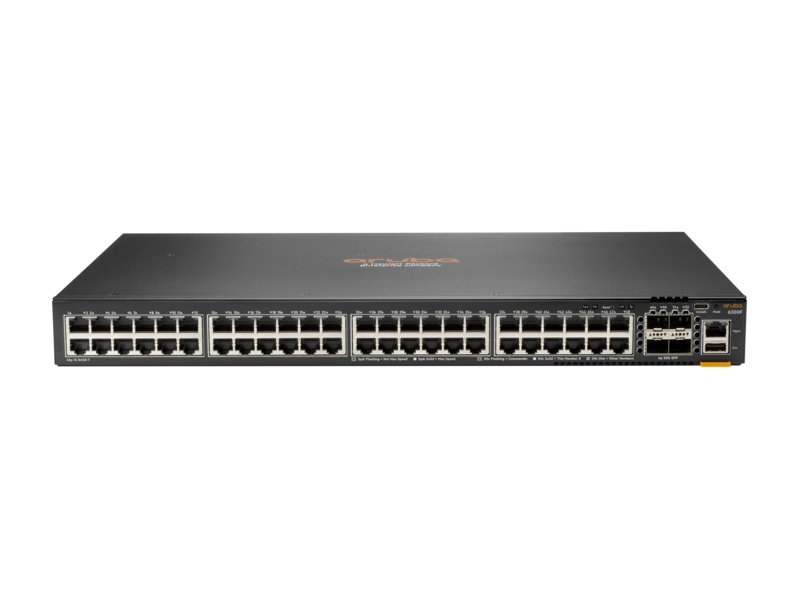

HPE Aruba Networking Aruba 6300F 48-port 1GbE & 4-port SFP56 Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
Original price was: $15,630.00.$11,167.34Current price is: $11,167.34.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Data transmission | |
| Number of VLANs | 4094 |
| MAC address table | 29490 entries |
| Switching capacity | 496 Gbit/s |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 ?s |
| Latency (10 Gbps) | 1.46 ?s |
| Packet buffer memory | 8 MB |
| Optical fiber | |
| Fiber optic connector | SFP, SFP+, SFP28, SFP56 |
| Transmission distance (max) | 10 km |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 8 MB |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Built-in processor | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP, SFP+, SFP28, SFP56 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP, BGP4, IP, OSPF |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Gray |
| Form factor | 1U |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (max) | 74 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 45 ?C |
| Storage temperature (T-T) | -40 – 70 ?C |
| Operating relative humidity (H-H) | 15 – 95% |
| Storage relative humidity (H-H) | 15 – 95% |
| Weight & dimensions | |
| Width | 17.4″ (442 mm) |
| Depth | 12.9″ (327 mm) |
| Height | 1.73″ (43.9 mm) |
| Weight | 9.83 lbs (4.46 kg) |
